Professional modular sewer pipeline CCTV inspection system with Full HD imaging, 360° pan rotation, laser crack measurement, six-wheel drive crawler, 1000 ft cable reel, IP68 protection, Windows-based software, and DN100–DN1000 inspection range.
The QL-PipeVision Pro 1000 is a professional sewer pipeline CCTV inspection system for municipal utilities, public works teams, contractors, and infrastructure inspection professionals.
It helps operators inspect sewer lines, stormwater networks, culverts, industrial pipelines, and underground utility systems. Also, the system supports pipeline inspection from DN100 to DN1000.
The system includes a Full HD 1920 × 1080 pan-and-tilt inspection camera. As a result, operators can view pipeline conditions clearly during field inspections.
In addition, the camera supports continuous 360° endless pan rotation. It also includes 10× optical zoom, 12× digital zoom, automatic focus, and manual focus. Therefore, users can inspect cracks, defects, joints, and pipe surfaces in detail.

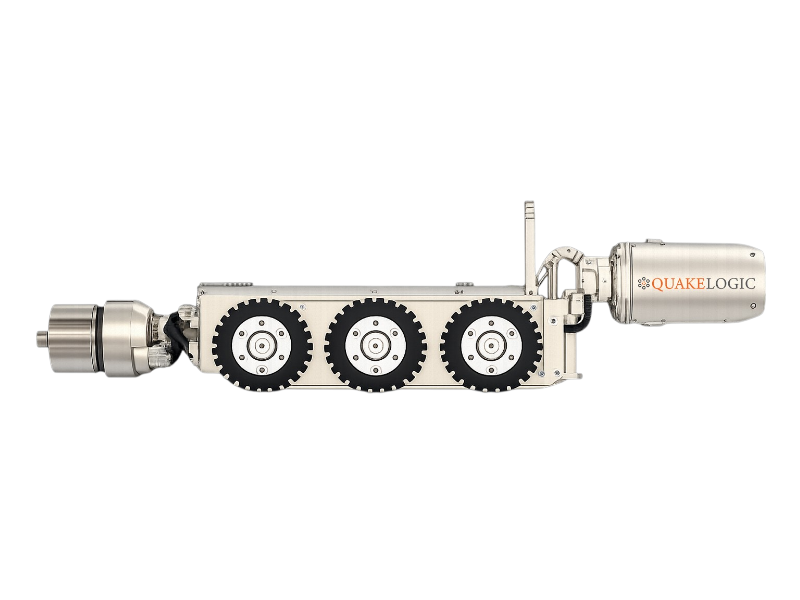

The QL-PipeVision Pro 1000 uses a heavy-duty six-wheel drive crawler platform. It includes dual high-torque electric drive motors, an electric camera lift, and automatic camera height adjustment.
Moreover, the crawler supports interchangeable wheel sets. This helps the system adapt to different pipe diameters and inspection conditions.
The integrated laser crack measurement system helps operators measure and document defects. In addition, the system includes a precision distance counter with 1 mm accuracy.
Key inspection functions include:
The system includes Windows-based inspection software. It supports live video display, digital recording, report generation, database management, USB data export, and Ethernet communication.
Furthermore, the motorized cable reel includes a standard 1000 ft inspection cable. The IP68-rated camera and crawler assembly provide reliable operation in demanding field environments.
Overall, the QL-PipeVision Pro 1000 gives inspection teams a reliable and portable solution for sewer inspection, defect documentation, and infrastructure maintenance.
It is suitable for municipalities, utility companies, contractors, and public works departments that need accurate pipeline inspection and efficient reporting.
The system is suitable for municipal sewer inspection, sanitary sewer networks, stormwater pipelines, culverts, underground utility systems, industrial pipelines, straight pipelines, curved pipelines, and complex pipeline networks. Optional features include extended inspection cable lengths, modular crawler configurations for larger pipe diameters, and interchangeable wheel sets for different pipe conditions and operating environments.
