QL-BIAXIAL STANDARD is a portable, high-precision dual-axis earthquake simulator with a 100 kg payload capacity at 1g, 750 x 750 mm platform, integrated controller and servo-driver, IP-based remote operation, and included EASYTEST software.
Biaxial Shake Table System – Dual-Axis Motion, Multi-Waveform Control, Easytest Software is a QuakeLogic shake table for earthquake simulation, vibration input, structural model testing, education, and component validation. The product is positioned for buyers who need technically appropriate equipment, clear application fit and a practical path from evaluation to quotation.
The main technical value of Biaxial Shake Table System – Dual-Axis Motion, Multi-Waveform Control, Easytest Software is its support for controlled motion, repeatable laboratory workflows, and integration with instrumentation or data acquisition systems. The page should be used as a starting point for engineering review, with final selection based on required capacity, environment, interfaces, accessories and documentation.
This product is most relevant for university laboratories, structural engineers, seismic researchers, and product validation teams. It is written for technical buyers who need enough context to shortlist equipment before requesting drawings, datasheets, lead time, integration details or a formal quotation.
Final configuration, options, documentation and compatibility should be confirmed with QuakeLogic before procurement. QuakeLogic can review sensor, controller, software, fixture, accessory, training and documentation requirements where those items apply to the selected system.
Buyers choose Biaxial Shake Table System – Dual-Axis Motion, Multi-Waveform Control, Easytest Software when they need a product-specific solution rather than a generic catalog item. The intended value is a clearer fit between the application, the technical configuration and the procurement workflow. It fits naturally alongside related QuakeLogic products such as Desktop-V2 Shake Table, Desktop-V2 Shake Table, Ironcore Bi-Axial Shake Table – High-Force Vibration Simulation System for Structural and Geotechnical Testing when building a complete system or comparing alternatives.
Contact QuakeLogic for application review, quotation support, documentation requests and help comparing this product with related systems.
Share your payload, axis, stroke, frequency, and installation requirements with QuakeLogic engineering sales.
| Axes | 2 (bi-axial) |
|---|---|
| Payload area | 29.5 × 29.5 in (750 × 750 mm) |
| Stroke | ±3.9 in (±100 mm) |
| Payload / acceleration | 220 lb (100 kg) at 1g |
| Maximum frequency | 20 Hz |
| Drive | Servo motor with precision linear guides |
| Controls | Integrated controller and servo-driver; IP-based Ethernet |
| Feedback | Two MEMS accelerometers |
| Software | EASYTEST included |
Small Scale Shake Tables / Testing Equipment
QL-BIAXIAL STANDARD is a portable, high-precision dual-axis earthquake simulator with a 100 kg payload capacity at 1g, 750 x 750 mm platform, integrated controller and servo-driver, IP-based remote operation, and included EASYTEST software.

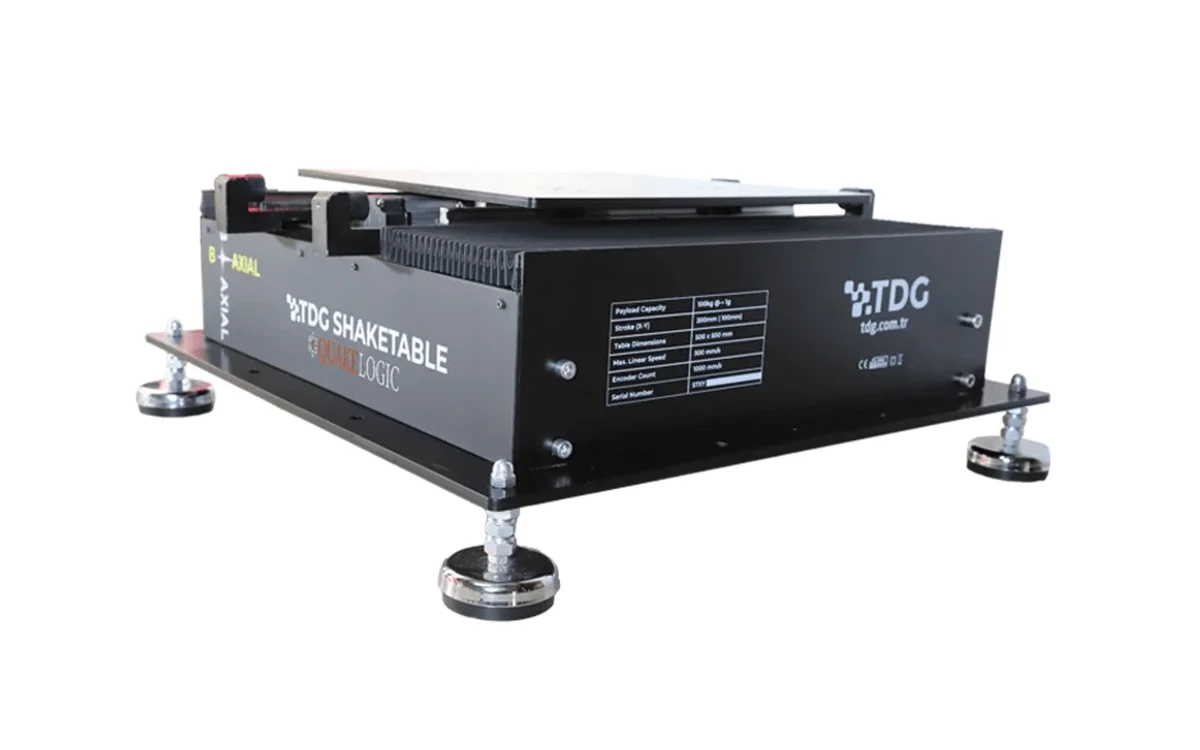

QL-BIAXIAL STANDARD is a fully integrated, portable bi-axial shake table engineered for universities, government laboratories, private research facilities, and technical training programs. It reproduces coordinated two-axis motion for earthquake simulation, structural dynamics, component testing, sensor evaluation, and classroom demonstrations.
The system combines a servo motor, super-low-friction precision guides, an integrated controller and servo-driver, two under-table MEMS accelerometers, and IP-based control in one compact platform. With a 750 x 750 mm payload area, 100 kg capacity at 1g, ±100 mm stroke, and operation up to 20 Hz, it gives laboratories meaningful test capability without a large external control cabinet.
QL-BIAXIAL STANDARD is designed for coordinated two-axis earthquake simulation, structural model testing, vibration studies, sensor evaluation, component testing, geotechnical demonstrations, research, and engineering education.
The standard configuration provides a 750 x 750 mm payload area, ±100 mm maximum stroke, a 100 kg payload capacity at 1g, and a maximum operating frequency of 20 Hz.
Yes. The controller and servo-driver are integrated into the system, and the full EASYTEST control suite is included at no additional charge.
Yes. Its IP-based Ethernet architecture supports remote setup, start, stop, monitoring, and test review from a networked workstation.
Two MEMS accelerometers mounted beneath the moving plate provide feedback for comparing commanded input with actual table output. EASYTEST displays acceleration, displacement, FFT, SRS, and post-test records.
EASYTEST supports earthquake records, sine, sine sweep, triangle, sawtooth, square, and user-defined profiles, plus continuous ASCII time-history import.
The revised datasheet lists extended warranty, an additional anti-dust protection kit, an adjustable mounting set, and guided EASYTEST training.
Confirm specimen mass and footprint, acceleration, frequency, stroke, waveforms, fixtures, instrumentation, facility details, training, and desired options.
