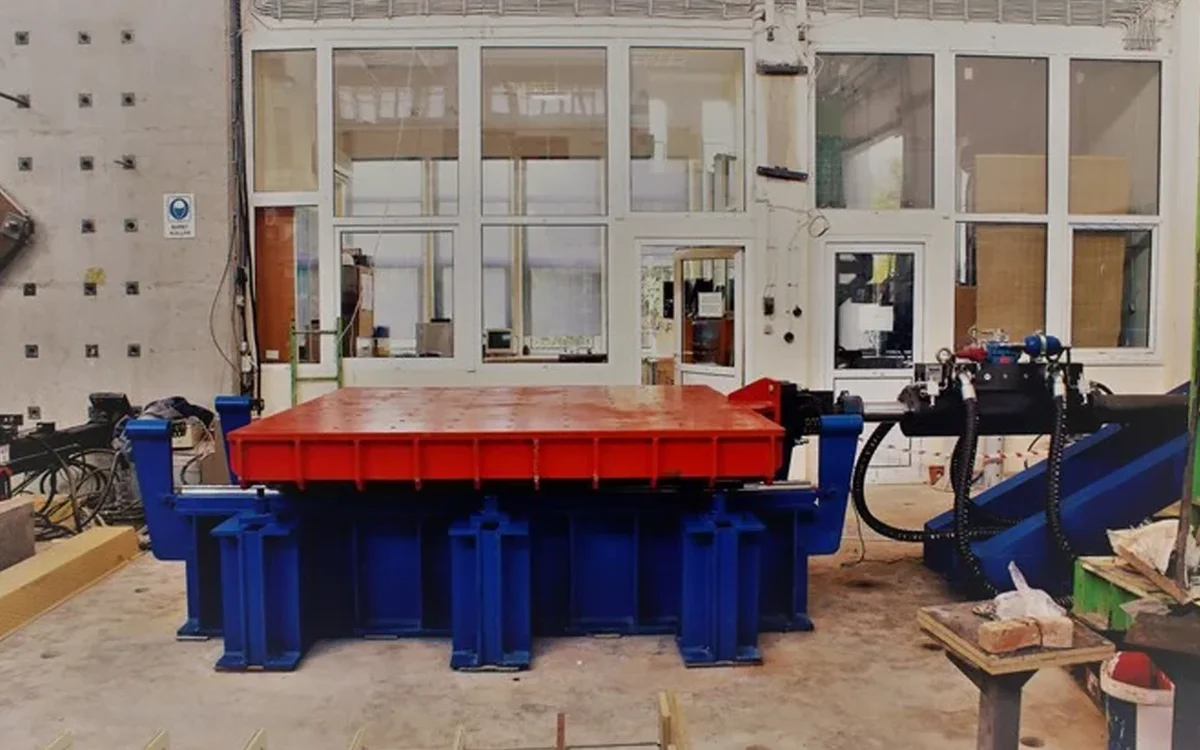

HIGH-CAPACITY SHAKE TABLE

Large Scale Shaketables - Testing

As the original manufacturer of the first high-capacity shake table, we offer both single-axis and multi-axis systems tailored to meet a wide range of testing requirements—including customizable payload capacity, table size, stroke, and number of axes. Our systems are capable of replaying recorded earthquake motions, executing predefined waveforms such as sine and triangle, and running user-defined acceleration or displacement time histories with high precision.

OVERVIEW

REQUEST A QUOTE

Data Sheet

Request a Demo

OVERVIEW

Description

Description

Fully Operable via PC Software

Key Specifications:

Top Table Size: Up to 4m x 4m
Payload Capacity: Up to 50 tons
Stroke Range: ±200 mm
Control System: Closed-Loop PID Control
Functionality: Realistic Earthquake Simulation
Design: Optimized Hydraulic System

Customizable Shake Table Solutions
Our Servo-Electro-Mechanical Shake Table systems can be tailored to meet your specific research needs—including payload capacity, table dimensions, stroke range, and number of axes.

Integrated Measurement System
For complete test analysis, this earthquake simulator is best paired with a comprehensive sensor package. It enables accurate measurement of the test specimen’s response in terms of acceleration, displacement, and strain.

Recommended Instruments:
