Description

APPLICATIONS

• Seismological networks
• Structural monitoring and survey
• Post-seismic damage analysis
• Early warning

ADVANCED PROCESSING POWER

Sentinel-R is equipped with a quad-core processor that runs at 1.8GHz and 2GB of DDR4 RAM. Seismic localization software such as Lunitek Casp, SeisComP, EarthWorm or Structural Health Monitoring software such as Lunitek Asclepius or third party and proprietary software can be installed and run on the device. Sentinel-R comes with a Linux Debian Bullseye installation (kernel 5.4.3).

LOW POWER CONSUMPTION

Sentinel-R consumes 1.8W@12V in idle state (Linux up, WiFi active, 4G modem on). The internal battery guarantees an autonomy of 8 hours. This is a useful in case of a black out and keeps the system up and running until the mains come back.

FEATURE-RICH

Sentinel-R is equipped with a fast 4G CAT1 modem which is backed up by the internal battery, and with a Gigabit Ethernet port that allows fast and reliable communication between the device and hosts.

VERSATILE

Sentinel-R can be used as an accelerograph with high computational power or simply as a super rugged power pc on the system network. Typical application of the device is to work as a master of a network of accelerographs where the main purpose of the setup is to collect and stream data to a remote server based on the Lunitek Jupiter software.

ROBUST AND RELIABLE

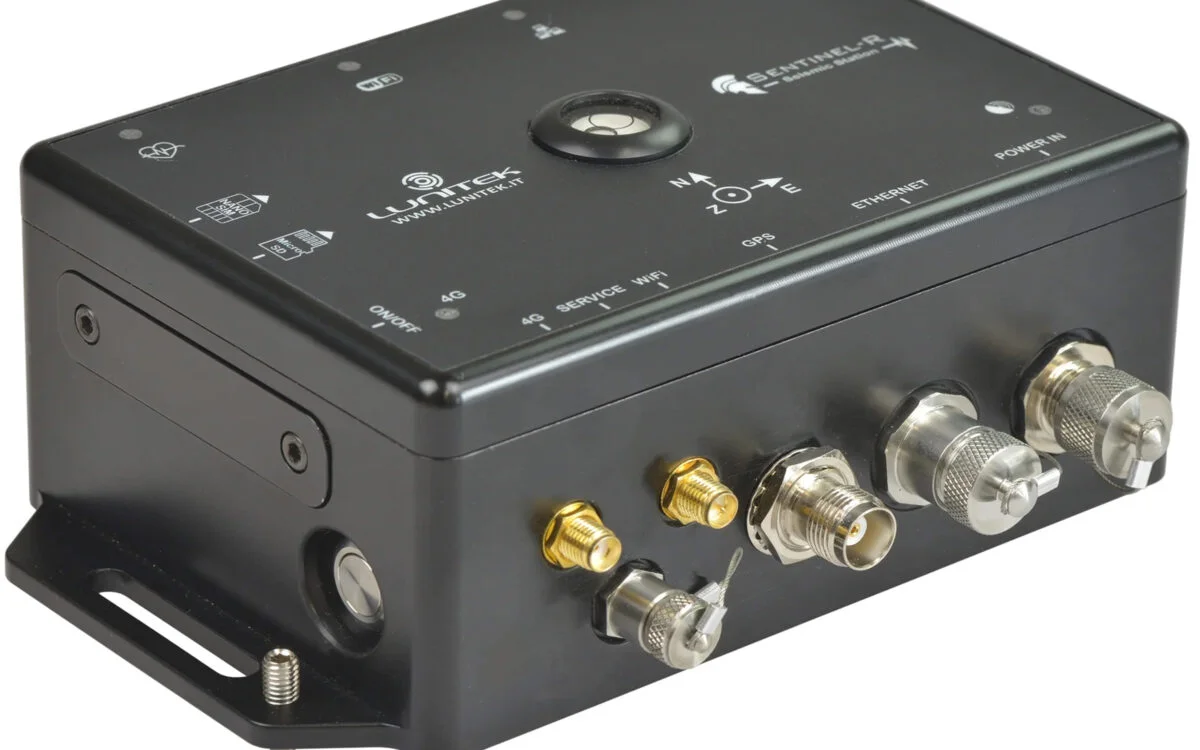

Sentinel-R comes in an anodized aluminum case which is rugged and shock-resistant and thus suitable for field applications. Sensor connectors are industry standard M8 and SMA, robust easy to find on the market. Sentinel-R is IP67.
