QL-TITAN-PRO – 3 kW Fiber Laser Cutting Machine
QL-Titan Pro is a compact, fully enclosed 3 kW fiber laser cutting machine with a 51″ × 51″ work area, autofocus smart head, CypCut CNC control, and Delta servo drives. Delivered turnkey with chiller, compressor, dust collector, installation, training, and a 12-month warranty, it’s the ideal solution for schools, labs, and light production environments.
OVERVIEW
Description
Precision metal cutting for schools, makerspaces, and production labs. QL-Titan Pro delivers industrial 3 kW fiber-laser performance in a safe, compact 4’×4′ footprint with an autofocus head, CypCut control, and robust Delta servo drive platform. Installation, onsite training, and a 24-month warranty are included.
What’s Included (Turnkey Package)
- QL-Titan Pro (3 kW fiber laser, 51″ × 51″)

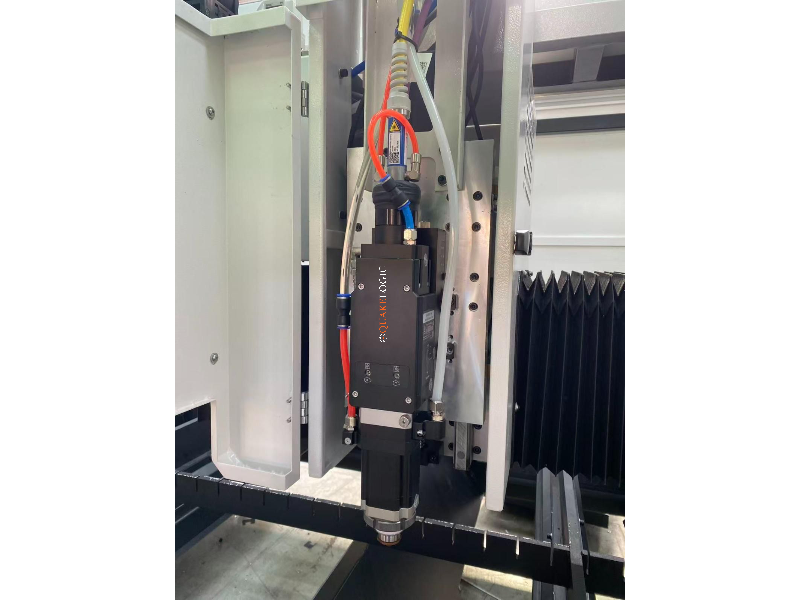

- Autofocus smart laser head
- Industrial CNC with CypCut software (nesting, libraries, Ethernet connectivity)
- Delta servo motors: Y (2 × 1500 W), X (1 × 1000 W), Z (1 × 400 W)
- Precision motion system: linear guides + rack & pinion

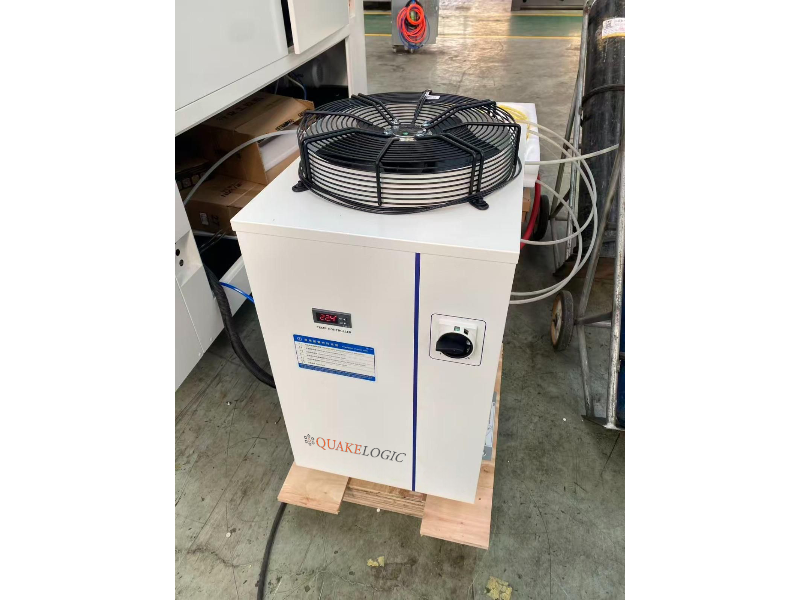

- Industrial water chiller (3 kW capacity)
- Air compressor + dryer combo
- Dual-core dust collector
- 50 kVA transformer for stable, clean power
- Automatic lubrication system

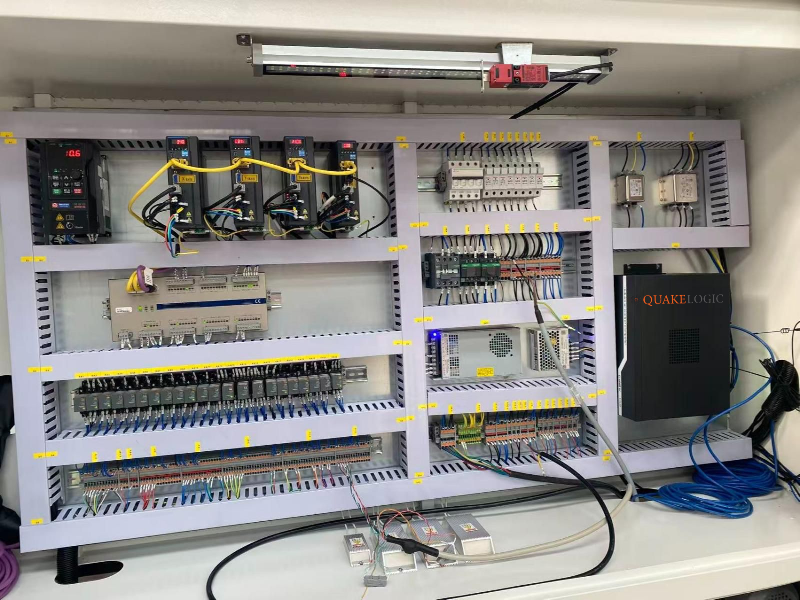

- Electrical safety package and heat-managed control cabinet
- Consumables starter kit & spare parts
- Onsite installation, commissioning, and operator training
Performance & Accuracy
- Positioning accuracy: ≤ 0.5 mm/m
- Repeatability: ≤ 0.02 mm
- Frame: heavy-duty welded steel, vibration-resistant for consistent cut quality
Typical Materials & Thickness Ranges*
- Carbon steel, stainless steel, aluminum, brass, copper, and more.
- Fast production cutting for thin-to-medium sheet applications (edu/prototyping/job-shop).
*Exact thickness capacities depend on material, gas, and cut quality requirements.
At-a-Glance Why QL-Titan Pro for Schools & Labs?
- Purpose-built turnkey bundle reduces integration risk and hidden costs.
- Enclosed design and training support safer learning environments.
- CypCut software lowers the learning curve and speeds time-to-part.
- Fully enclosed guarding with interlocked access
- Emergency stop and status indicators
- Documentation and training aligned to school/industrial safety best practice.
KEY BENEFITS
- Industrial power, compact size — 3 kW fiber laser with a 51″ × 51″ (1300 × 1300 mm) work area.
- Operator-first safety — fully enclosed housing with interlocks and a retractable/sliding table.
- Push-button precision — autofocus smart cutting head and CypCut CNC for fast, accurate results.
- Smooth motion control — Delta servo motors and high-rigidity linear guides with precision rack.
- Turnkey delivery — chiller, compressor-dryer, dust collection, transformer, install, and training included.
- Low total cost — efficient power usage, reduced rework/scrap, and long-life components.
SPECIFICATIONS

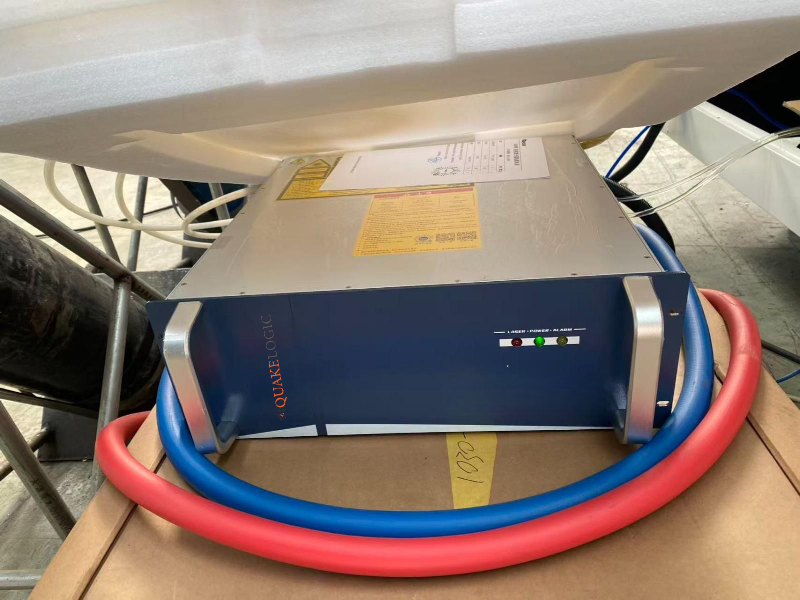

- Laser Source: 3 kW fiber laser
- Work Area: 1300 × 1300 mm (51″ × 51″)
- Laser Head: Autofocus smart head
- Control: Industrial CNC with CypCut
- Motion: Delta servo motors (Y 2×1500 W, X 1×1000 W, Z 1×400 W)
- Guides/Rack: high-rigidity linear guides + precision rack & pinion
- Cooling: industrial water chiller (3 kW)
- Dust & Air: dual-core dust collector; compressor-dryer combo
- Transformer: 50 kVA (included)
- Accuracy: ≤ 0.5 mm/m; Repeatability: ≤ 0.02 mm
- Enclosure: full enclosure with retractable/sliding table
APPLICATIONS
- Education & Training: safe, enclosed platform for CTE labs and university shops.
- Prototyping & Job-Shop: fast turnaround on brackets, panels, enclosures, signage.
- R&D & Light Production: parametric optimization, fixture making, pilot runs.
SOFTWARE
- Intuitive part programming and auto-nesting to minimize scrap
- Material libraries and cut condition presets
- Real-time monitoring, alarms, and operator guidance
- Ethernet/USB file transfer, DXF import, and common CAD/CAM compatibility
FAQs
Q: What gases do I need?
A: Cutting gas depends on material (e.g., nitrogen for stainless/aluminum, oxygen for carbon steel). We’ll recommend flow/pressure specs and help you source locally.
Q: Can students operate the machine?
A: Yes—after completing safety and operation training. Enclosure and interlocks help maintain a safe environment.
Q: What file formats does it accept?
A: Standard workflows via DXF and common CAD/CAM exports; CypCut handles nesting and cut conditions.
Q: What’s the install timeline?
A: We coordinate freight, onsite setup, and training to meet your lab schedule. A pre-install checklist ensures utilities and space are ready.
