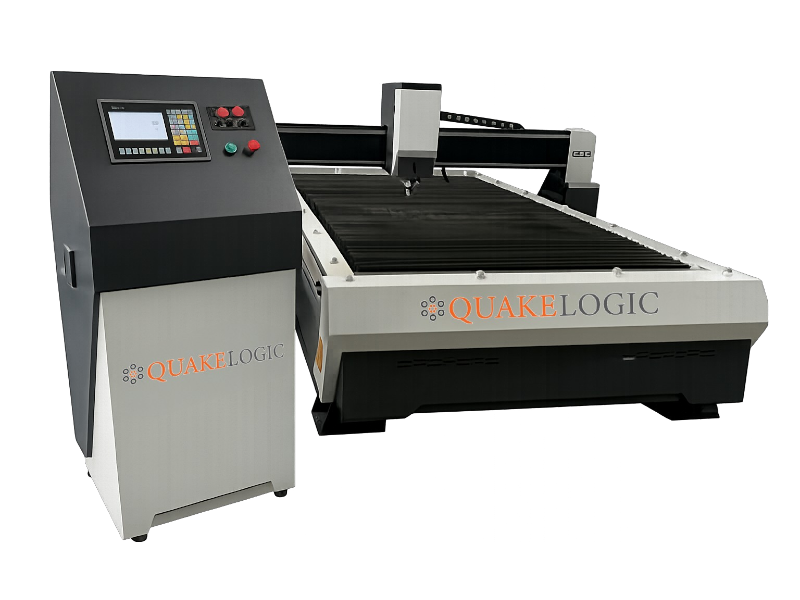

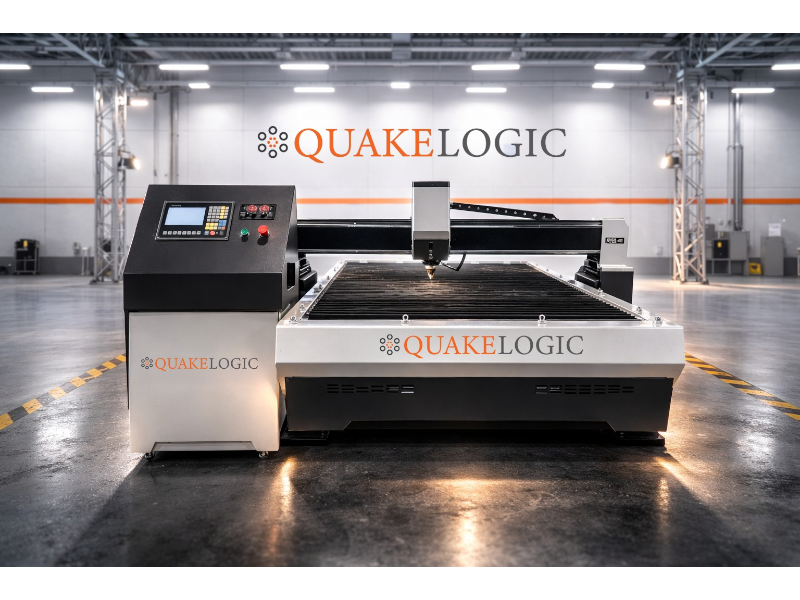

QL-PlasmaForge 1313 CNC Plasma Cutting System
High-performance CNC plasma cutting system with rigid steel construction, servo-driven motion control, and industrial-grade precision for metal fabrication and training environments.
OVERVIEW
Description
The QL-PlasmaForge 1313 CNC Plasma Cutting System is a high-performance solution for metal fabrication. It is designed for both industrial use and training environments.
The system features a heavy-duty welded steel frame. As a result, it provides excellent stability and long-term durability. In addition, the rigid structure ensures consistent cutting accuracy.
It uses a dual-drive gantry system with rack and pinion. Moreover, closed-loop servo motors deliver smooth and precise motion. Therefore, the system achieves highly repeatable results.
The machine includes an industrial CNC controller. This allows accurate positioning and efficient operation. At the same time, it simplifies workflow for operators.
The QL-PlasmaForge 1313 supports plasma arc cutting. It can process mild steel, stainless steel, and aluminum. Furthermore, it can cut up to 1 inch (25 mm) thickness and pierce ≥ 1/2 inch (12 mm).
An automatic Torch Height Control (THC) system is included. This ensures optimal cutting distance. As a result, cut quality remains consistent across different materials.
The system offers a 1300 mm x 1300 mm working area. It also includes an integrated water table, which helps reduce heat and improve performance.
In addition, the software supports DXF and DWG formats. It includes toolpath generation, nesting optimization, and cut simulation. G-code editing is also available.
Overall, the QL-PlasmaForge 1313 delivers precision, efficiency, and reliability. Therefore, it is ideal for workshops, production facilities, and educational institutions.
Technical Specifications
-
Machine Type: CNC Plasma Cutting System
-
Working Area: 1300 mm × 1300 mm (≈ 4 ft × 4 ft)
-
Table Type: Integrated Water Table
-
Frame Construction: Heavy-duty welded steel
-
Motion System: Dual-drive gantry (rack & pinion)
-
Guide Rails: Precision linear guide system
-
Motors: Closed-loop servo motors
-
Control System: Industrial CNC controller
-
Power Supply: 3-phase, 60 Hz
-
Positioning: High-precision repeatable motion
Cutting Performance
-
Cutting Method: Plasma arc cutting
-
Compatible Materials: Mild steel, stainless steel, aluminum
-
Max Cutting Thickness: Up to 1″ (25 mm) mild steel
-
Piercing Capacity: ≥ 1/2″ (12 mm) mild steel
-
Torch Type: Industrial plasma torch
-
Height Control: Automatic THC system
-
Safety: Breakaway torch protection
Software & Features
-
Supported Formats: DXF, DWG
-
Toolpath Generation: Included
-
Nesting Optimization: Included
-
Cut Simulation: Included
-
G-Code Editing: Included
-
High-accuracy cutting performance
-
Robust gantry structure
-
Efficient and repeatable production output
