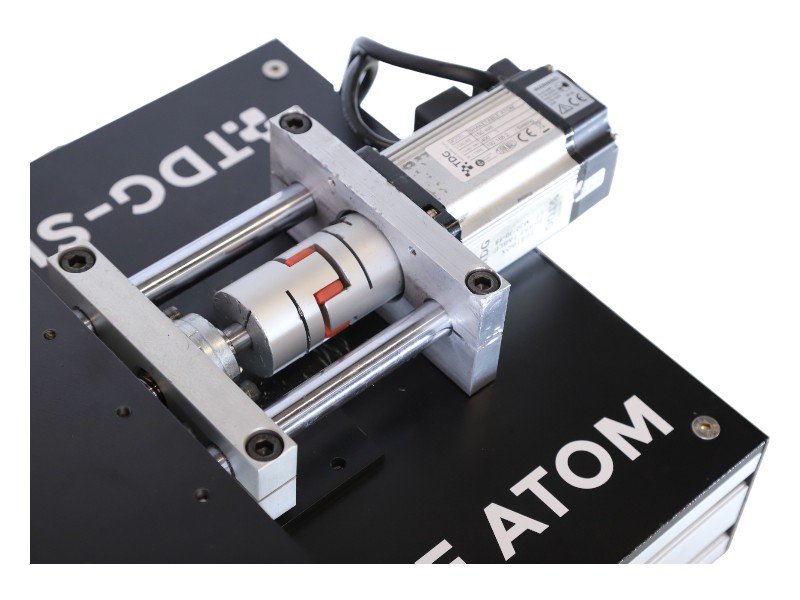

ATOM-25 PORTABLE SHAKETABLE

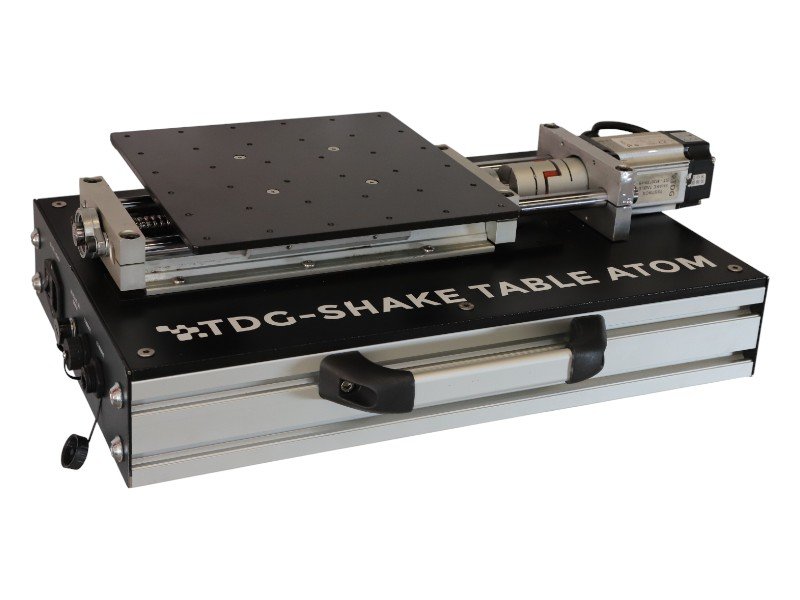

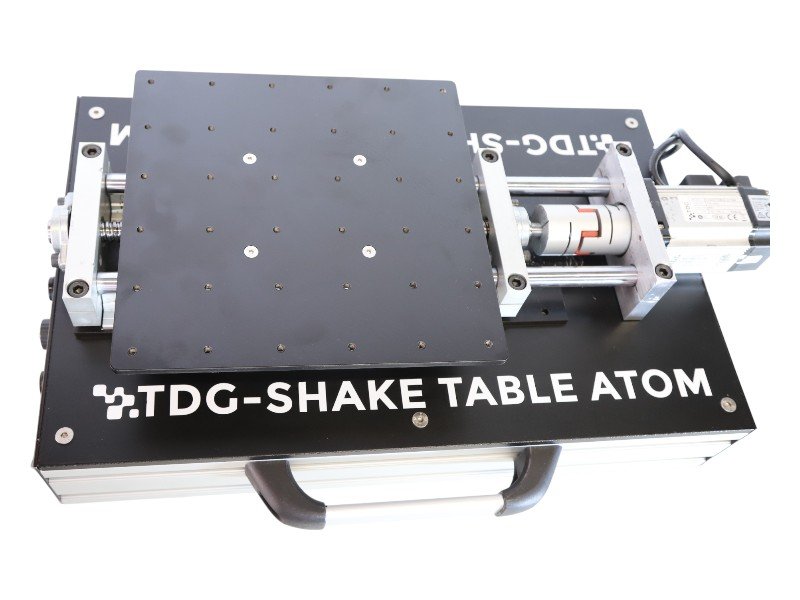

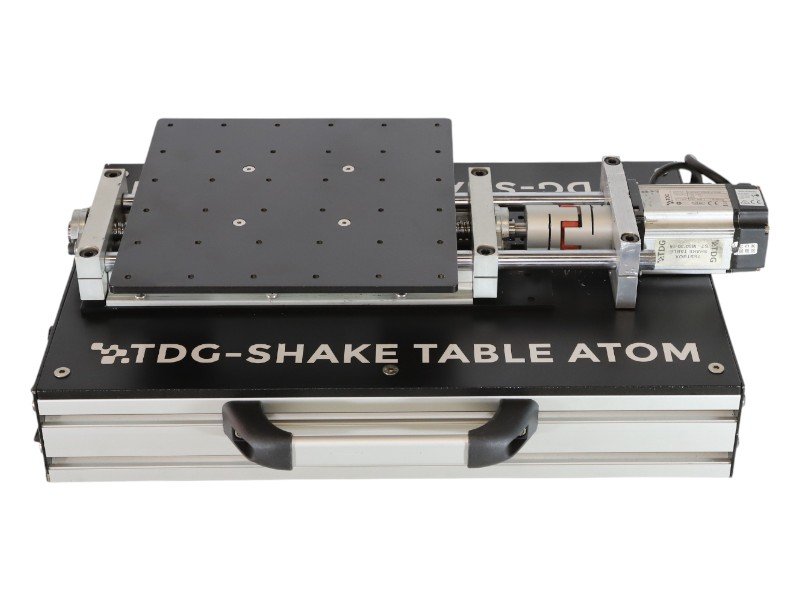

ATOM is a portable, high-precision and budget-friendly uni-axial SHAKETABLE. We have now two different models of the ATOM shake table as ATOM-25 and ATOM-40. ATOM-25 has a 250 mm x 250 mm moving table and ATOM-40 has a 400 mm x 400 mm moving table.
ATOM is an excellent instrument for simulating earthquakes using actual records, or waveforms such as sine, triangle, boxcar, etc. The user can also defined acceleration, velocity or displacement input signal easily.
OVERVIEW
Description
It is ideal for calibrating accelerometers, seismometers and other seismic instruments. ATOM is also used for simulating earthquakes using actual records, waveforms such as sine, triangle, etc. or user defined acceleration or displacement input signal.
The shaketable comes with a user-friendly software included in the price.
Commonly used in Civil Engineering departments for educational purposes, the ATOM can also be used for structural mechanics, earthquake, soil and geological engineering tests.
UNMATCHED FEATURES & UNMATCHED PRICING
Video Player
00:00
00:00
TEST CAPACITY
- Degree of Freedom: Single
- Movement Degree: Horizontal
- Table Dimensions: 250×250
- Payload: 50 kg @ 1 g
- Velocity: 800 mm/s
- Stroke: +/-125 mm (250 mm)
- Max. Operating Frequency: 30 Hz
- Position Precision: 0.01 mm
PERFORMANCE
Video Player
00:00
00:00
PHYSICAL & ENVIRONMENTAL
- Overall Dimensions: 470x320x150 mm (LxWxH)
- Weight: 18 kg
- Operating Temperature: 0-50 ℃
POWER & DATA
- 110-220 Volt AC

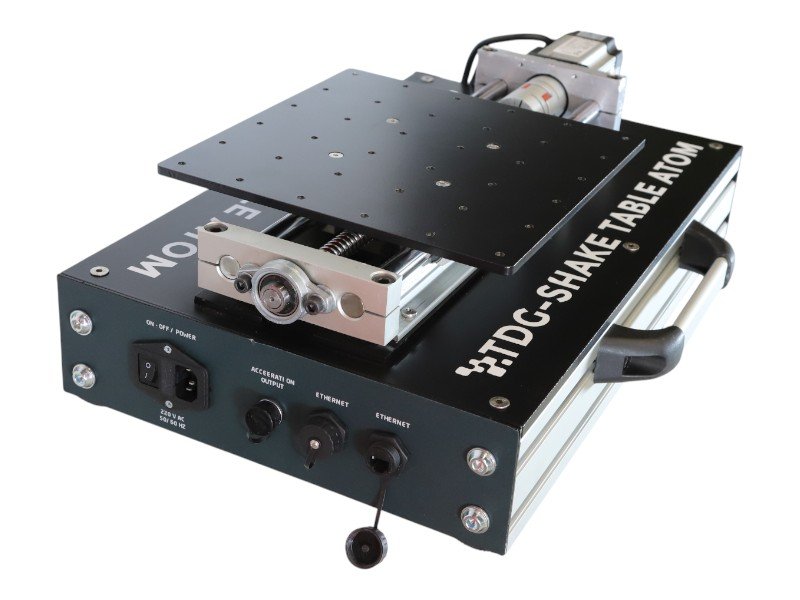

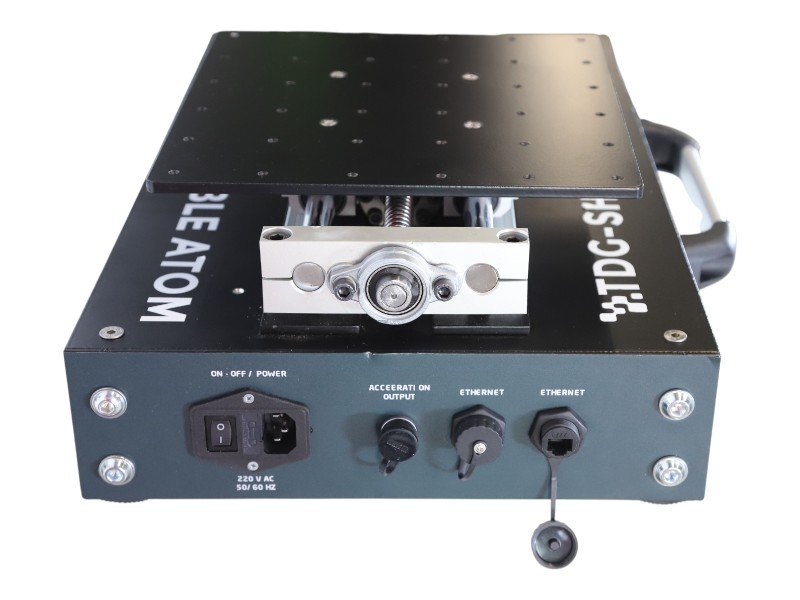

- PC Connection: Ethernet
- Power Consumption: 0.6 kW Max
CERTIFICATION
- CE: LVD (2014/35/EU), EMC (2014/30/EU)TDG Calibration Lab
- Calibration: Factory Calibration Certificate
SOFTWARE
EasyTest user-friendly control software included
Models
Shaketable ATOM models available
- ATOM-25 :Top Table Dimensions 25×25 cm (L x W), Uniaxial, Capacity ±1g @ 50 kg max. payload, Stroke ±125 mm
- ATOM-40 :Top Table Dimensions 40×40 cm (L x W), Uniaxial, Capacity ±1g @ 50 kg max. payload, Stroke ±125 mm
Datasheet
CALIBRATION REPORT
Faqs
FREQUENTLY ASKED QUESTIONS
WHERE CAN I GET THE EASYTEST SHAKE TABLE CONTROL SOFWARE TRAINING?
Answer: A YouTube video is available HERE.
For online training via ZOOM, contact us at support@quakelogic.net for pricing and scheduling information.
CAN THE SHAKE TABLE WORK WITH 110 VOLT AC?
Answer: For correct functionality, 220 Volt is needed. We recommend using a portable transformer with a minimum of 500 Watt. We provide a transformer, please contact sales@quakelogic.net for pricing.
WHAT SHOULD BE THE NETWORK SETTING OF THE COMPUTER TO BE CONNECTED TO SHAKE TABLE?
Answer: We recommend setting the network configuration as follows:
IP: 192.168.2.5
Subnet mask: 255.255.255.0
Gateway is not important but it can be set to 192.168.2.1
PRESSING “GO TO ZERO” DOES NOT CENTER THE MOUNTING PLATE. HOW TO FIX IT?
Answer: Assuming all the software is installed properly, if the system does not move even though you click the “Torque” button and if the system does not move even though you click the “Torque” button and Click “Go to zero” in the software, a setting may need to be changed in a file inside the installation folder. Please refer to Section 3.2 of User Manual to change “dioType” in “project.ini” file. The alternatives are “Sinking” and “Sourcing”
After changing this parameter and starting the software again, make sure that the small LCD display on the table read “RUN” after you hit “Torque” button on the software.
When the torque is closed, the screen will read “RDY” and it will turn into “RUN” when the torque is enabled. When it reads “RUN” system will respond to motion commands through the software.
