NB-IOT WIRELESS TILTMETER (INCLINOMETER) + CLOUD DASHBOARD

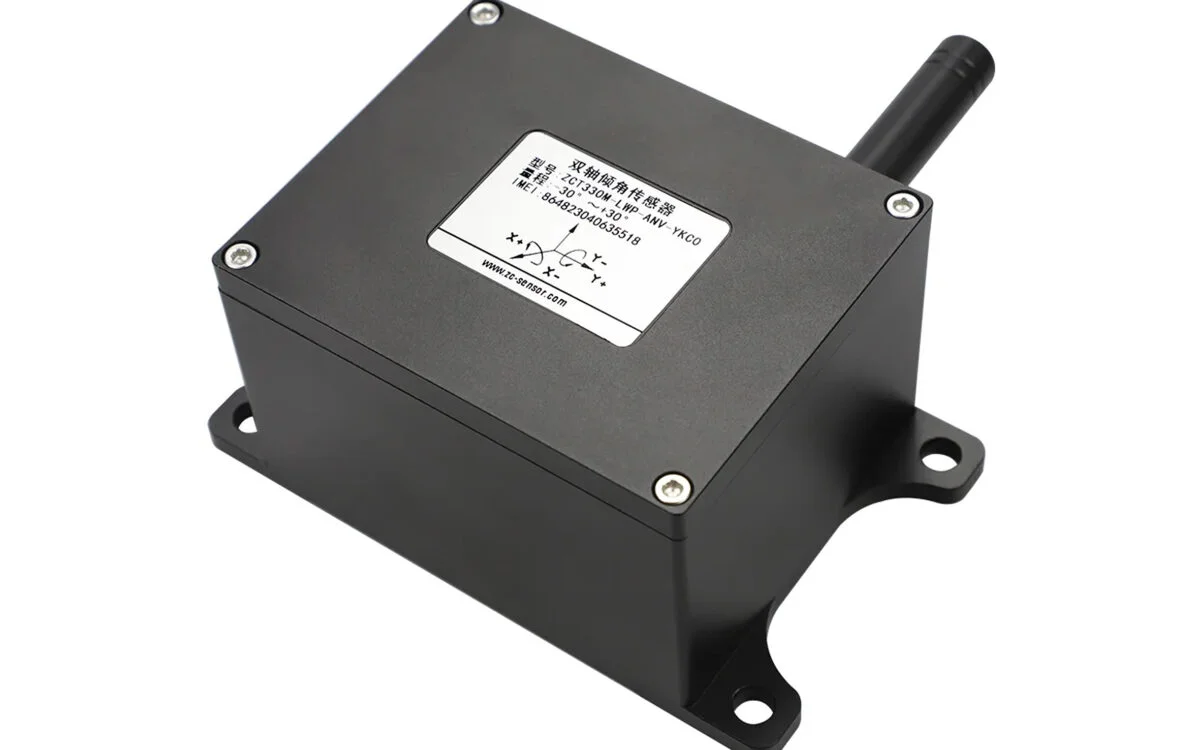

Designed by Shanghai Zhichuan Electronic Tech Co., Ltd., ZCT330MX‐SWP‐N‐YK is a high‐precision dual‐axis inclinometer using NB‐IoT technology for communication. The device measures tilt along each axis from -30 to +30 degrees with a resolution of 0.001 degrees. The device sends an alarm to the platform via the NB-IoT network when the tilt angle of the monitored object exceeds a certain preset value. The critical tilt angle can be set over the entire measuring range with an accuracy of 0.001 degree. The default protocol is CTIOT (based on China Telecom platform), while MQTT and COAP (connectable to One net platform) are optional. The model can be widely used in geotechnical and structural health monitoring, municipal administration, telecom, public utility and many other areas.
Description
FEATURES
- Based on NB wireless technology
- Dual-axis, +-30° measuring range
- Accuracy 0.005~0.01°, Alarm accuracy 0.01~0.1°, Resolution 0.001°
- Low consumption, long work time by one battery
- Battery capacity can be customized
- Free monitoring platform is provided
- Auto set work brand, support B5, B8, B3 frequency bands.
APPLICATIONS
- Wireless tilt monitoring of ancient buildings
- Tilt monitoring of dam/ bridges
- Tilt monitoring of light poles and billboards for Smart Cities
- Tilt monitoring of manhole covers
- Shelf safety monitoring
